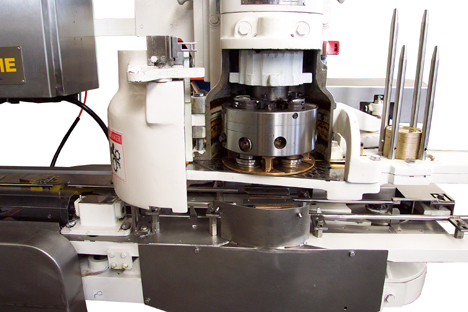

Jk Somme fully automatic machine
for seaming round cans (sanitary can seamer) made of tinplate, aluminum
or composite with diameters between 52 and 99 mm (Saga
003L between 105 and 153 mm)
and heights between 43 and 160 mm (Saga 003L
between 110 y 230 mm).
Up to 60 cans per minute maxi. mech. capacity, depending on quality
and product inside, to be confirmed each time (Saga 003L
between 10 and 40 cans per minute). Cans are kept
moving all the time, only during seaming motion cans stand still. Minimum
product spillage. Easy to adjust and surprising the quality and stability
of the seam achieved.
Single seaming head with 4
seaming rolls (x2 1st op & x2 2nd op).
Mechanically operated automatic
cover feed, placed on the side of the machine in full view of the operator.
Safety clutch in case a cover becomes jammed. Can infeed conveyor with
can selecting timing screw. Strongly constructed with feed and extractor
fingers. Can counter. Constant working level. Rapid can change over with
the proper change parts. Change of can height can be made without additional
parts. One single 2 HP motor. Electronic DC speed variator. Control voltage
at 24 volts. Easy to clean.
Parts
in contact with can made in stainless steel.
|
|
Seaming
heads
|
Accepted can diameters
|
Min-max
can height
|
Cans
per minute
|
|
|
1 |
52
- 99 mm
105
- 153 mm
|
43 - 160 mm
110
- 230 mm
|
<60 minute
<40
minute
|
|
