"Mechanical vacuum seaming by means of a vacuum pump" |
|
|
|
|
|
 |

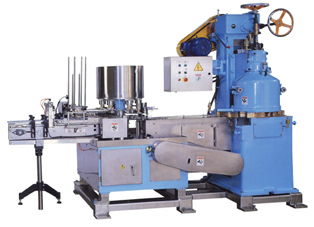

IRREGULAR CAN VACUUM SEAMERS
| VACUUM MASTER 485/486 | |||||
 |
|
VM 485 |
VM 486 |
 Brochure (564 Kb) |
|
Speed (cans/minute) |
<80 min |
<60 min |
|||
Max. Can Diagonals |
130 mm |
175 mm |
|||
Can Widths |
45 - 100 mm |
45 - 170 mm |
|||
Can Heights |
18 - 100 mm |
18 - 100 mm |
|||
|
Equipped with: * One 6 stations ROTARY CLINCHER, to separate, fed, centre, push and position the product and "clinch" each cover on its can at two opposite points. * One SEAMING HEAD inside a cast iron VACUUM CHAMBER with multi adjustable seaming operation cams (two first, two second operation seaming rolls). Stationary can principle.
|
|
 |
|||
 |
 |
||||

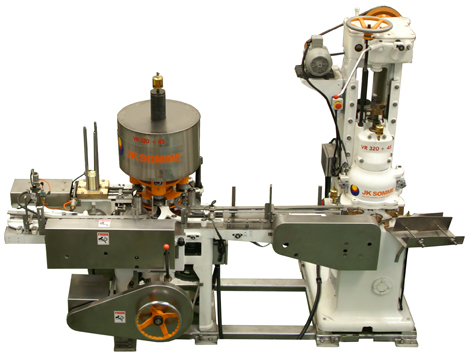

ROUND CAN VACUUM SEAMERS
| VR 310/320/318 | ||||||
 |
|
VR 310 | VR 320 | VR 318 | Brochure (Coming soon) |
|
Speed (cans/minute) |
<80 min | <50 min | <30 min | |||
Can Diameters |
52 - 99 mm | 52 - 99 mm | 99 - 153 mm | |||
Can Heights |
36 - 125 mm | <240 mm | 100 - 230 mm | |||
|
Equipped with: * One 4 stations ROTARY "RAIL" CLINCHER to separate, fed, centre, push and position the product and "clinch" each cover on its can. * One SEAMING HEAD inside a cast iron VACUUM CHAMBER (two first, two second operation seaming rolls). Stationary can principle.
|
|
 |
||||
 |
 |
|||||
